Features
  • 800 Watt Peak, 400 Wat RMS
  • 129 dB max SPL
  • 45 Hz - 20 kHz frequency response

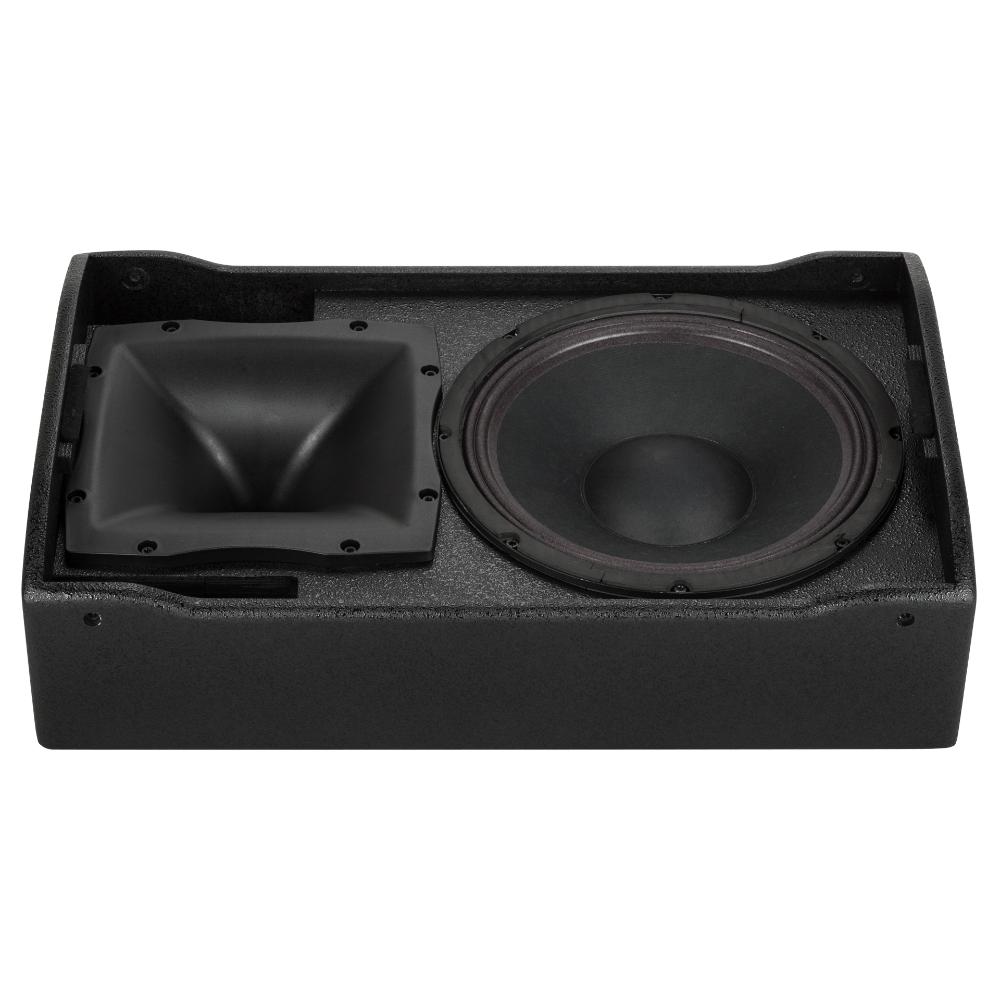

  • 12" Woofer, 2.5" voice coil
  • 1" Driver, 1.4" voice coil

ST Series is a practical solution for high intelligibility speech and audio applications, covering infill or delay, production studios, presentations and high power music sound reinforcement with or without subwoofers. A key requirement for everyday audio systems, delivering simple ‘plug and play’ solutions, without compromising performance and portability. Legendary RCF transducer technology coupled with state of the art digital amplification topology resulting in a perfectly optimised loudspeaker series. The ST Series provides high end audio coverage even at extreme sound pressure levels, unmatched reliability and acoustic compatibility across the whole series.


ARCHIVED

Part number:

13000460
ST 12-SMA
220-240V, EAN 8024530012809

13000461
ST 12-SMA
115V, EAN 8024530012816

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
129 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1.0'', 1.4'' v.c
Woofer
12'', 2.5'' v.c

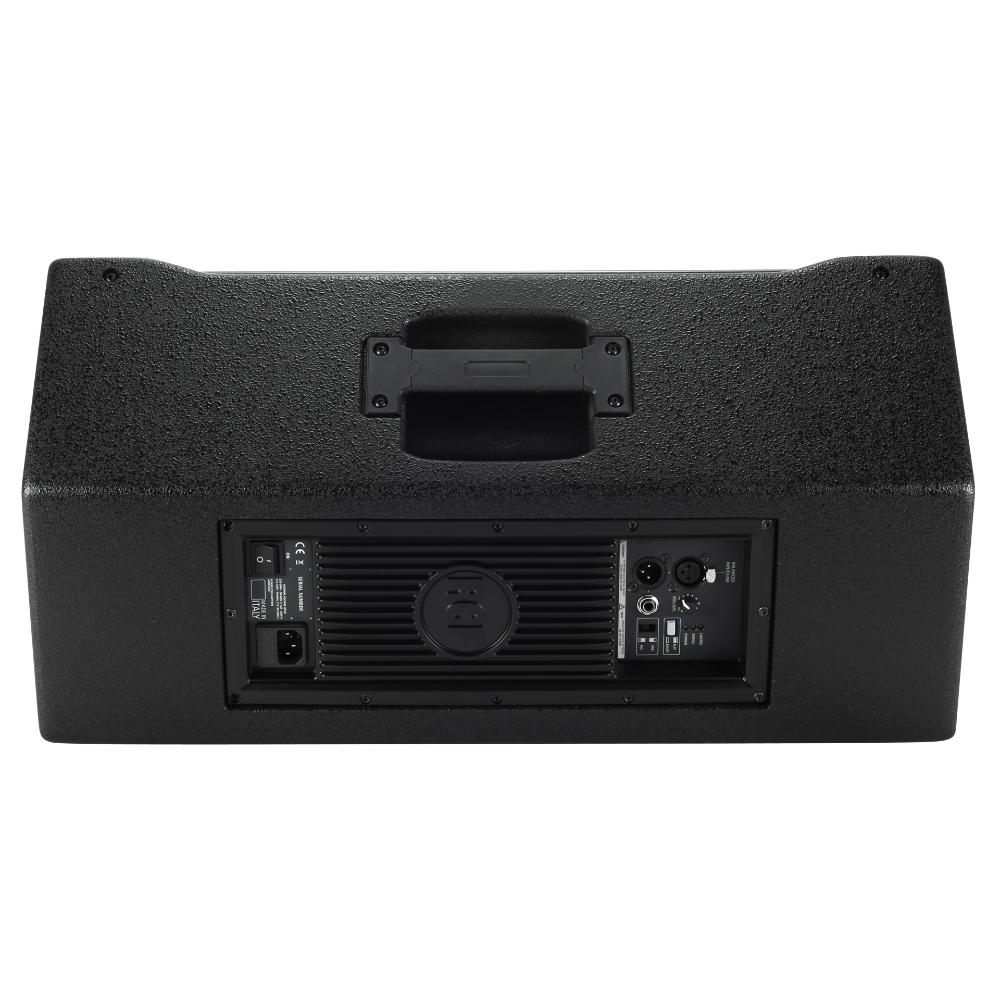

Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
1400 Hz
Protections
RMS, HF
Limiter
Soft Limiter
Power section
Total Power
800 W Peak, 400 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Handles
1 side

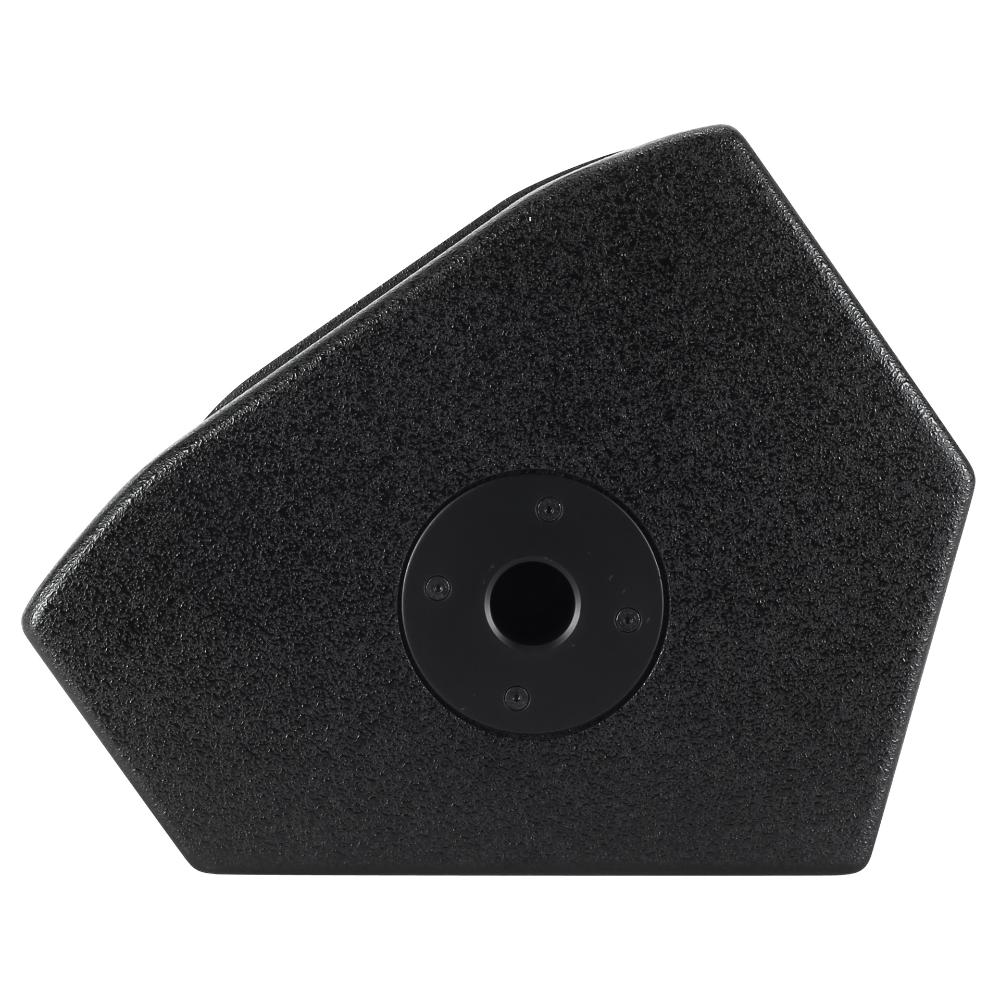

Pole mount/Cap
Yes
Grille
Steel
Color
Black
Size / Weight
Height
318 mm / 12.52 inches
Width
594 mm / 23.39 inches
Depth
400 mm / 15.75 inches
Weight
17.3 kg / 38.14 lbs
Shipping information
Package Height
604 mm / 23.78 inches
Package Width
352 mm / 13.86 inches
Package Depth
412 mm / 16.22 inches
Package Weight
19 kg / 41.89 lbs
