EVOX JMIX8
ACTIVE TWO-WAY ARRAY MUSIC SYSTEM
  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
  • 24,4/53.8 kg/lbs
Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

Part Number:

  • 13000556
    EVOX JMIX8
    220-240V, Black
    EAN 8024530015565
  • 13000557
    EVOX JMIX8
    115V, Black
    EAN 8024530015572
  • 13000569
    EVOX JMIX8 W
    220-240V, White
    EAN 8024530015602
  • 13000570
    EVOX JMIX8 W
    115V, White
    EAN 8024530015619







BE AMAZED!





ONBOARD DIGITAL MIXER

All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.

Read More



EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

iOS APP Download ANDROID APP Download







POWERFUL CLASS D AMPLIFIER

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

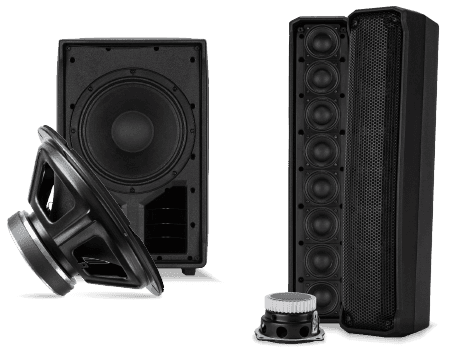

SUPERIOR TRANSDUCERS

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

LOW FREQUENCIES The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Read More

READY TO PLAY IN A FEW SIMPLE STEPS

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

MOUNTINGScrew the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

PLAY!Carrying and mounting your audio system has never been so quick.

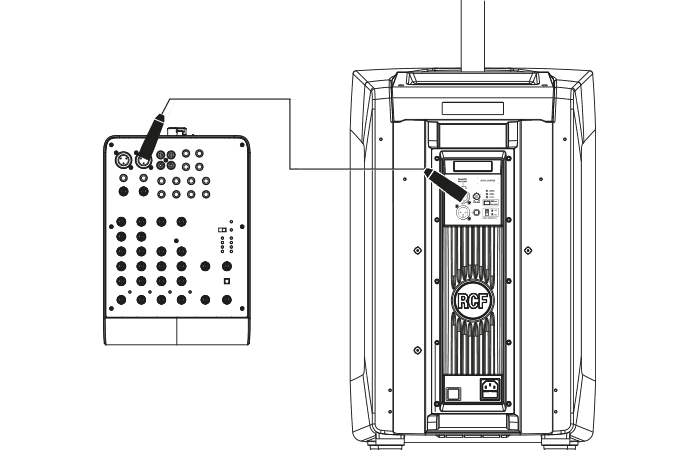

J SYSTEM CONFIGURATIONS

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

Read More

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

Read More

Specifications
Acoustical specifications
Frequency Response:
40 Hz ÷ 20000 Hz
Horizontal coverage angle:
120°
Max SPL @ 1m:
128 dB
Vertical coverage angle:
30°
Transducers
Fullrange:
8 x 2.0'', 1.0'' v.c
Woofer:
12'', 2.5'' v.c
Input/Output section
Input connectors:
XLR, Jack
Input sensitivity:
-2 dBu/+4 dBu
Input signal:
bal/unbal
Output connectors:
XLR
Processor section
Controls:
Volume, Boost, Mic/Line
Crossover Frequencies:
220 Hz
Limiter:
Soft Limiter
Protections:
Thermal, RMS
Power section
Connections:
VDE
Cooling:
Convection
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Total Power:
1400 W Peak, 700 W RMS
Electronic specifications
Frequency Response:
20 Hz ÷ 20 Hz
THD+N, 20dB gain, 0dBu out (% A-Weighted):
0.004
Processing
A/D-D/A conversion:
24 Bit @ 48.0 kHz
Dynamic Range:
108
Processing Channels:
8
Signal Processing:
32 Bit Floating Point
Inputs
A/D Dynamic range (dB):
108 dB
Gain Range:
0 dB ÷ 45 dB
Gain Selection:
0 dB ÷ 45 dB
Stereo Line Gain Selection:
0 dB ÷ 45 dB
HI-Z Line Inputs Impedance (MOhm):
1 Mohm
HI-Z Line Inputs:
1
Mic Inputs Impedance (KOhm):
3 kohm
Line:
4
Line Input Impedance (kOhm):
11 kohm
Low Cut:
20 Hz ÷ 1000 dB
Mic:
4
Phantom Power +48V:
Yes
Remote Controlled Storable Gain:
Yes
Stereo Line:
2
Stereo Line Input Impedence (kOhm):
11 kohm
Outputs
AUX output:
1
AUX Send:
1
Outputs specifications
Aux Out Impedance (Ohm):
150 ohm
Aux Out Level (dBu):
19 dBu
D/A Dynamic Range (dB):
108 dB
Main Out Impedance (Ohm):
150 ohm
Main Out Level (dBu):
19 dBu
Compressors
RCF Compressors:
4 mono (6 preset)
EQ
Description:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.
Input Channels EQ:
1 Semi Parametric / 2 Shelving
Auxiliary sends
AUX:
1 PRE/POST
FX POST:
1
Internal Effects
MultiFX Insert Effects:
1
Send Effects:
1
Mastering processors
Main OUT processors:
1
USB audio
Play trk:
2
Other features
Footswitch:
Yes
Electrical specifications
Power supply:
Internal
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
PP Composite
Color:
Black
Grille:
Steel
Handles:
1 Top
Size
Depth:
460 mm / 18.11 inches
Height:
623 mm / 24.53 inches
Weight:
24.4 kg / 53.79 lbs
Width:
400 mm / 15.75 inches
Shipping informations
Package Depth:
581 mm / 22.87 inches
Package Height:
676 mm / 26.61 inches
Package Weight:
28.6 kg / 63.05 lbs
Package Width:
451 mm / 17.76 inches
