TOURING

HDL 10-A

ACTIVE LINE ARRAY MODULE

1400 Watt Peak power - 700 Watt RMS
2 x 8" Woofers
133 dB max SPL
65 Hz 20 kHz frequency response

RDShape

Where to buy

Features

1400 Watt Peak power - 700 Watt RMS
133 dB max SPL
65 Hz 20 kHz frequency response
2 x 8" Woofers
1 x 2" Compression Driver

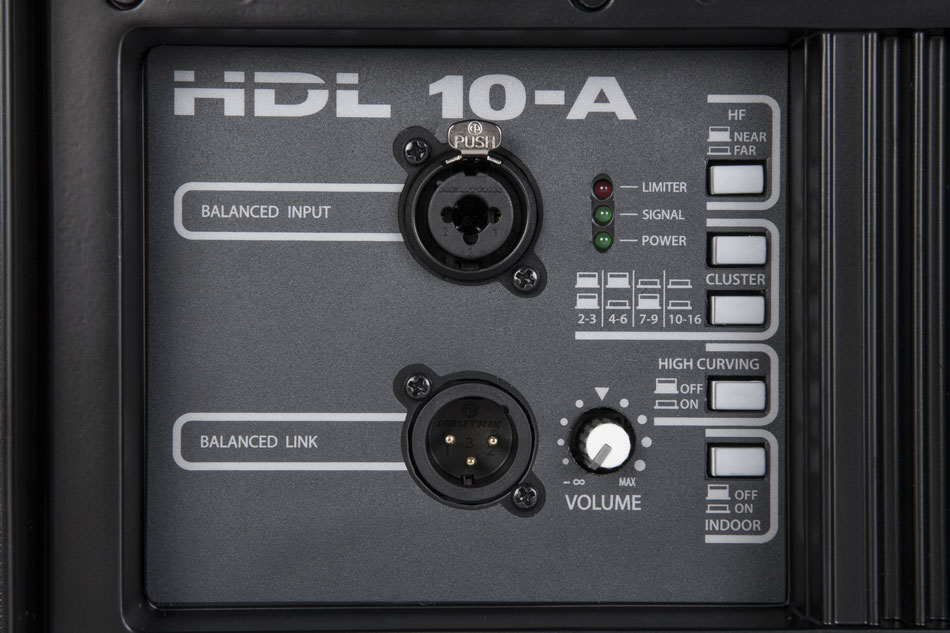

DSP controlled Input section with selectable presets
Tour grade safe and solid variable mechanics
Composite PP enclosure structurally wooden reinforced

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

Crossover presets

Supported by	On products	Enable via
ACE	SUB 9016-AS SUB 9019-AS SUB 9029-AS	RDTap APP

Quick lock PIN Table

Easy Shape Designer

Part number:

13040016
HDL 10-A
220-240V, Black, EAN 8024530010843

13040017
HDL 10-A
115V, Black, EAN 8024530010850

13040022
HDL 10-A W
220-240V, White, EAN 8024530012113

13040023
HDL 10-A W
115V, White, EAN 8024530012403

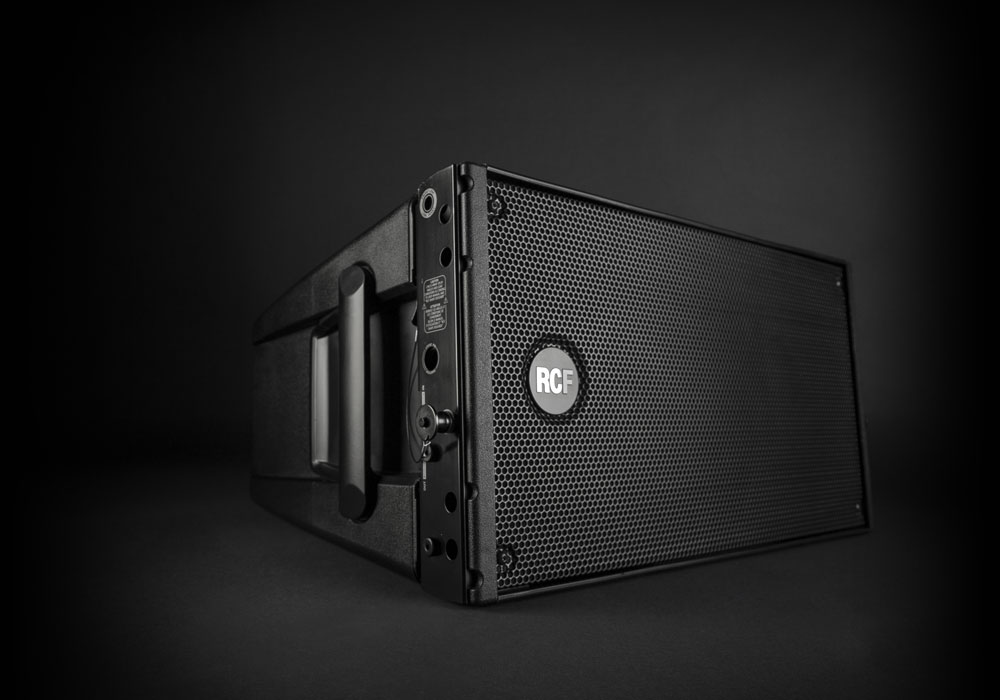

Tour sound in a compact size

The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

PRECISION SYSTEM DESIGN AND SIMULATION

RDShape is a 3D sound system design and acoustic-simulation platform for RCF and TT+ Audio speakers and subs. It enables touring pros, venue designers, and engineers to virtually lay out rigs, predict coverage and sound pressure level (SPL), verify rigging safety, and export system documentation.

Accurate 3D Acoustic Simulation
Comprehensive Sound System Design
AutoSplay and Sub Array Configuration
Mechanical Validation and Safety

3D Venue Modeling
STEP files for Collaboration
Fine Tune with EQs & Filters
Available on Windows and macOS

RCF precision transducers

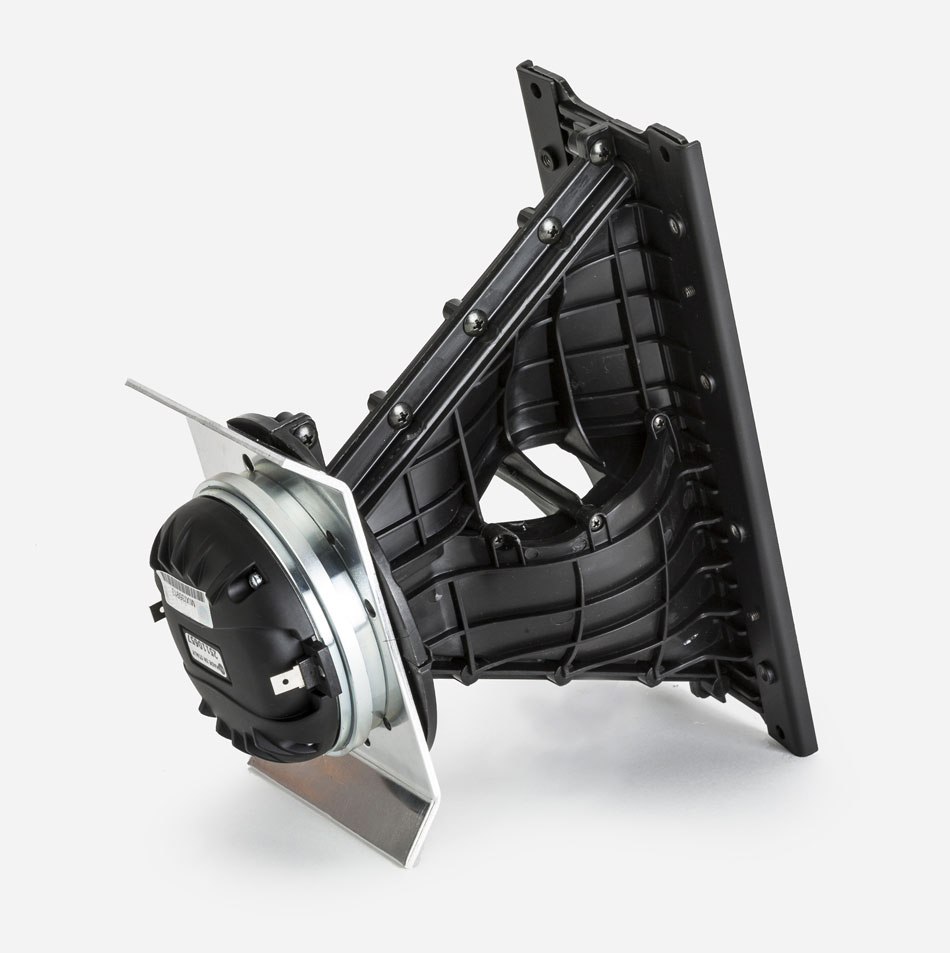

High frequencies - The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.

2 X 8" Woofers, 2.0" Inside-Outside voice coil
Water resistant fibre doped cone
Polycotton M-roll surround
High power magnetic structure

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
