Features
  • 1400 Watt Peak power - 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10" Woofers
  • 1 x 3" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.

Part number:

13040007
HDL 20-A
220-240V, EAN 8024530009960

13040008
HDL 20-A
115V, EAN 8024530009977

Responsive Image

Tour sound in a compact size

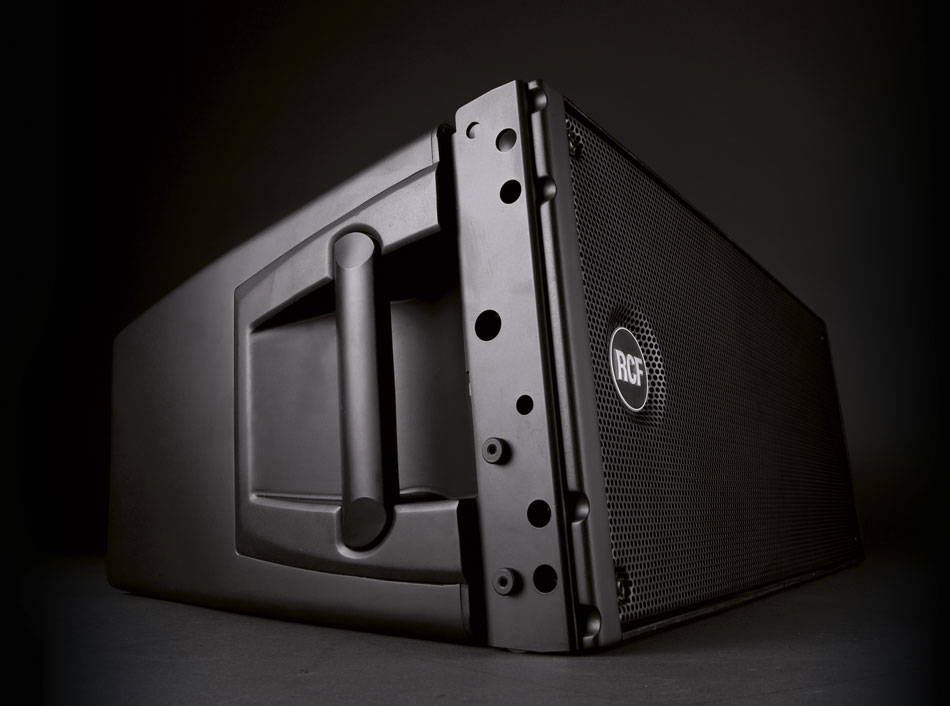

The HDL 20-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
Responsive Image
Responsive Image

RCF precision transducers

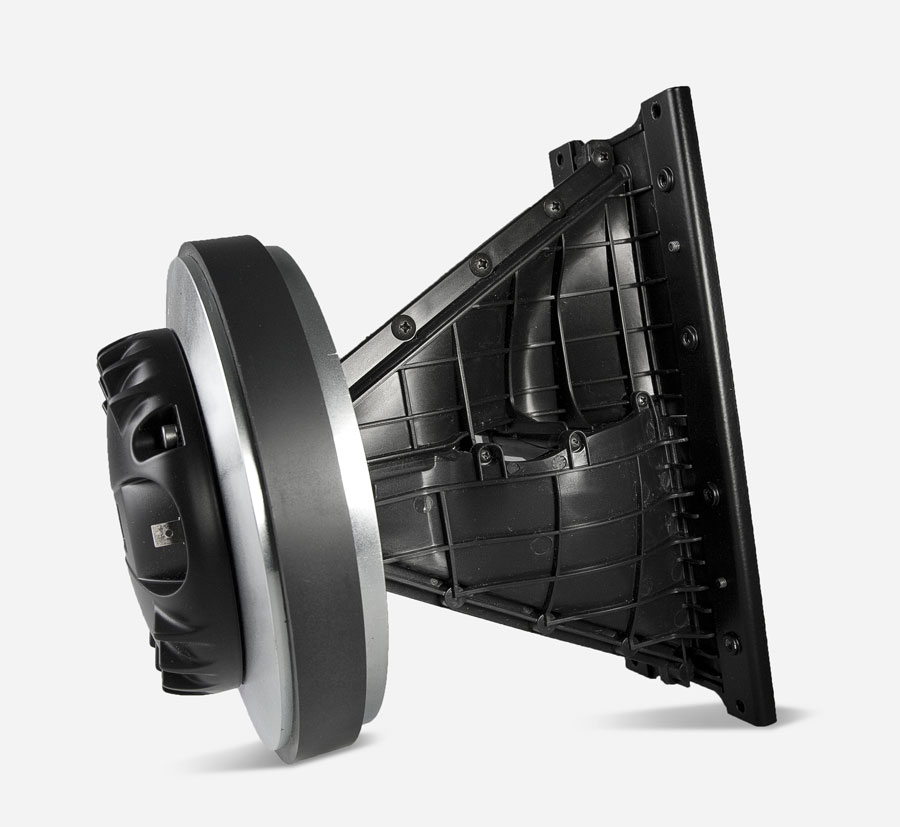

HIGH FREQUENCIES - The CD850 large format compression driver delivers one of the key advantages of the HDL 20-A, the 3” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.
LOW FREQUENCIES - High power woofers. Very high efficient and controlled bass reproduction.
  • 2 X 10" Woofers, 2,5" Inside-Outside voice coil
  • Water resistant fibre doped cone
  • Polycotton M-roll surround
  • Hypervented magnetic structure
Specifications
Acoustical specifications
Frequency Response:
55 Hz ÷ 20000 Hz
Max SPL @ 1m:
135 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
15°
Transducers
Compression Driver:
1 x 2.0'', 3.0'' v.c
Woofer:
2 x 10'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter

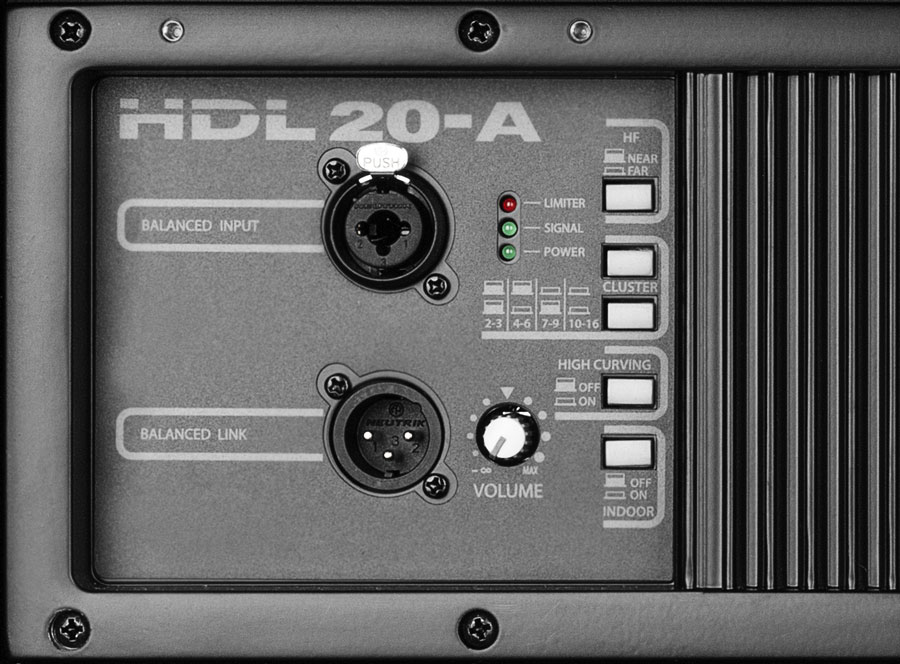

Controls:
Cluster, HF, High curving, Indoor
Power section
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
Rigging flyware
Handles:
2 side, 2 back
Grille:
Steel
Color:
Black,
Size
Height:
294 mm / 11.57 inches
Width:
705 mm / 27.76 inches
Depth:
445 mm / 17.52 inches
Weight:
30.2 kg / 66.58 lbs
Shipping informations
Package Height:
375 mm / 14.76 inches
Package Width:
800 mm / 31.5 inches
Package Depth:
500 mm / 19.69 inches
Package Weight:
33.2 kg / 73.19 lbs
