Features
  • 2 unit 19" rack, easy transportation
  • Fast response and low distortions
  • Easy to configure in stereo / mono / bridge modes
  • Extensive protective circuits ensure high reliability and operating safety.
  • Front panel signal / clip / protect LED indicators
  • XLR input connectors
  • SPEAKON NL4 output connectors

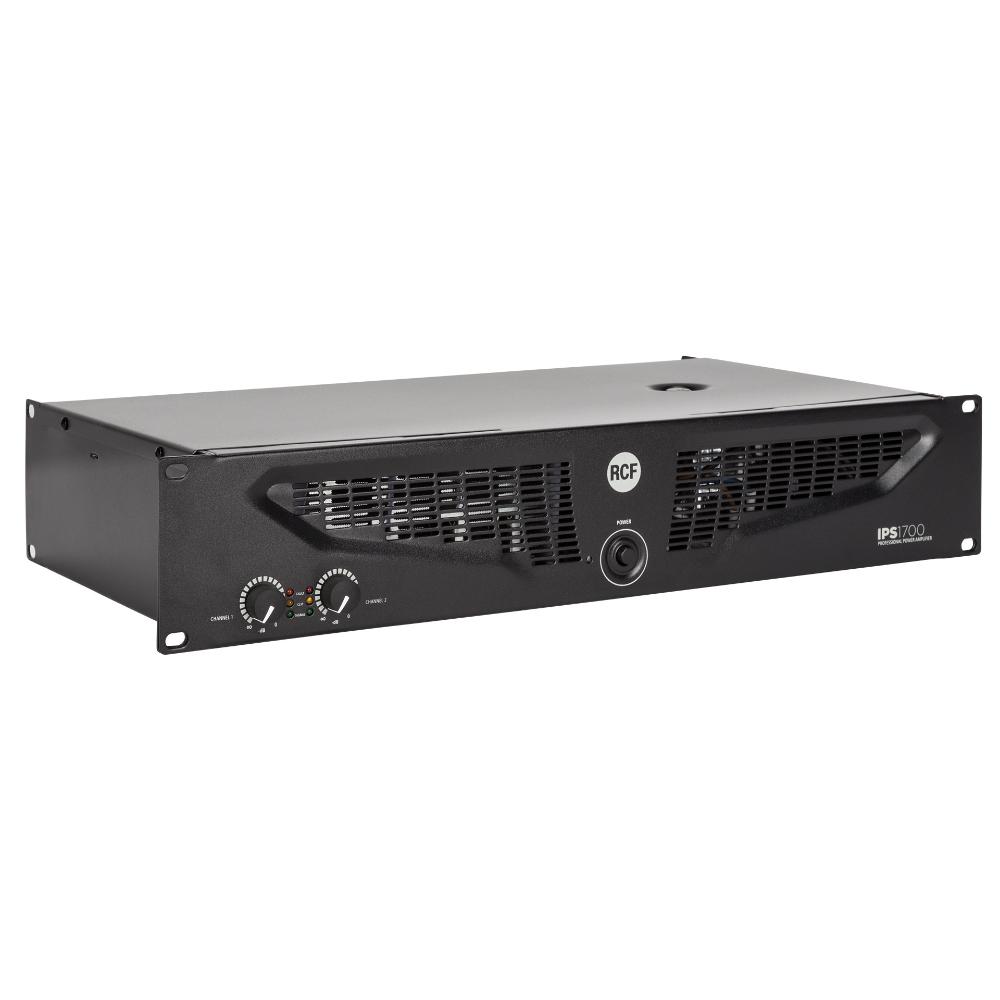

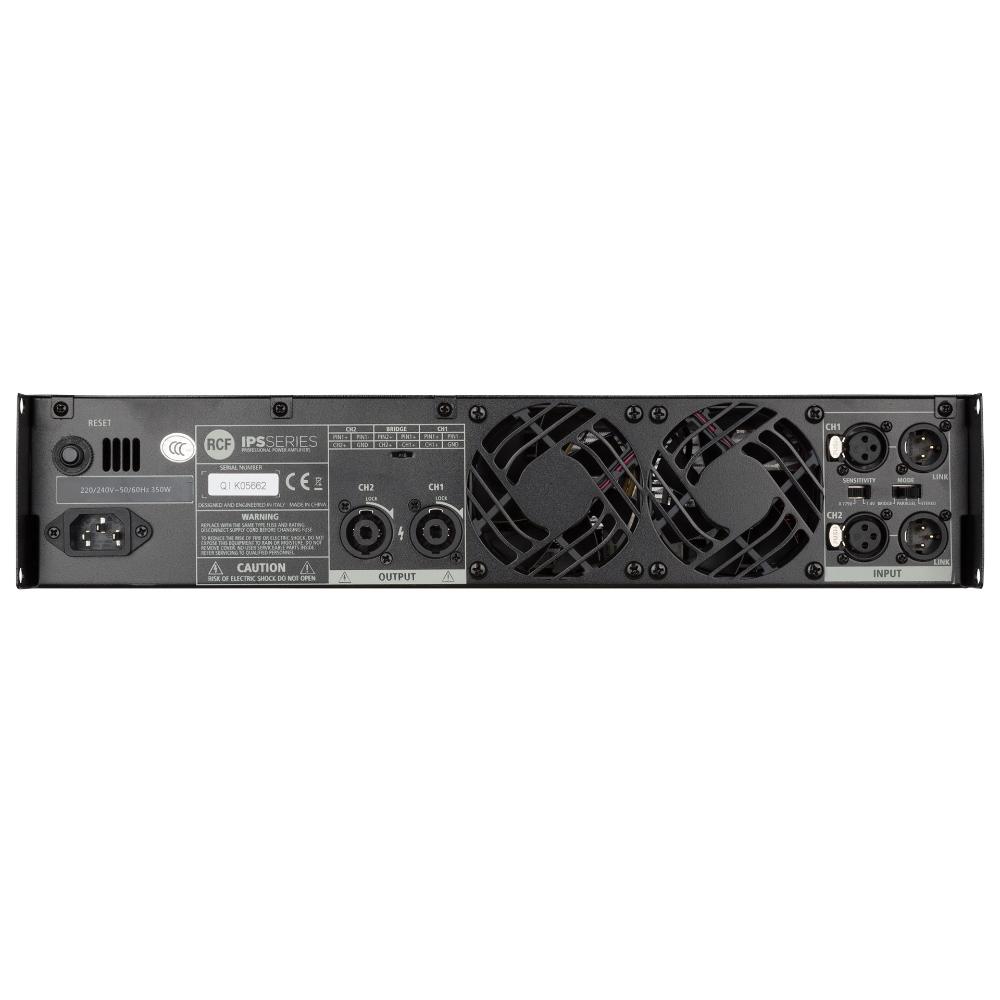

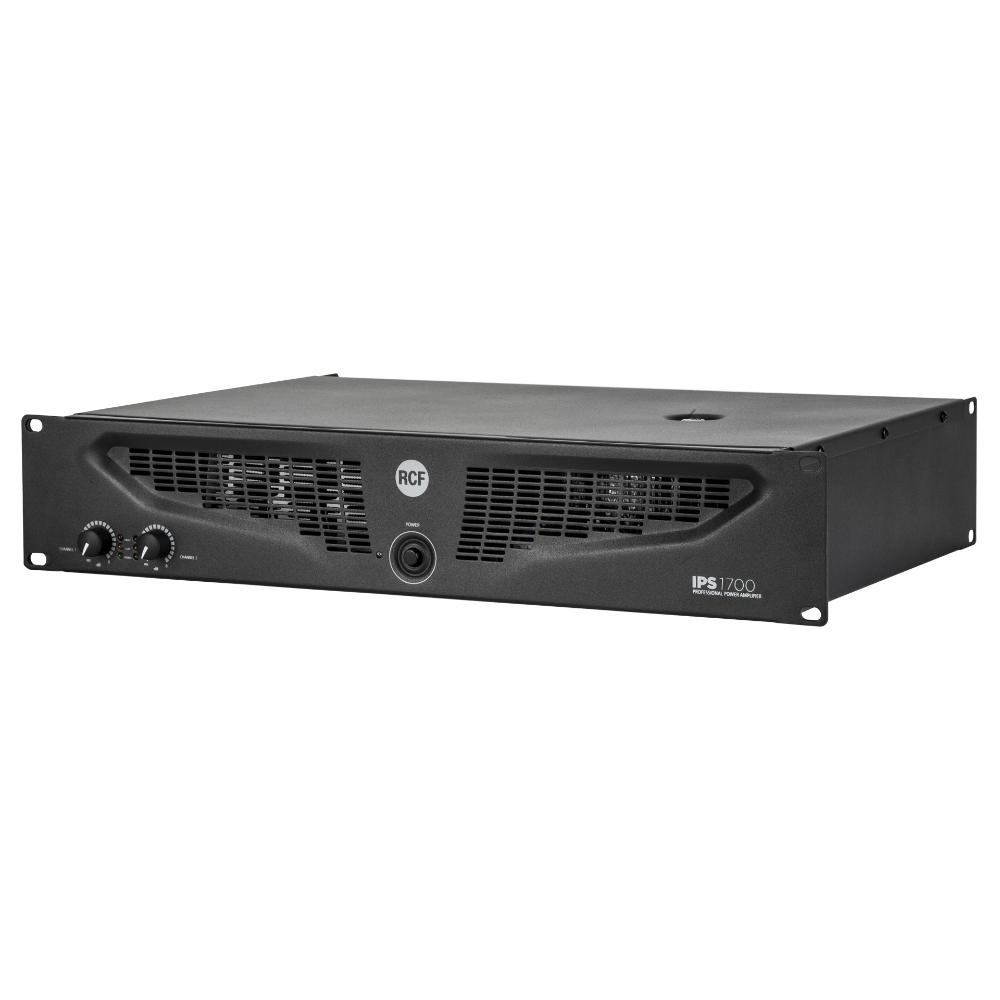

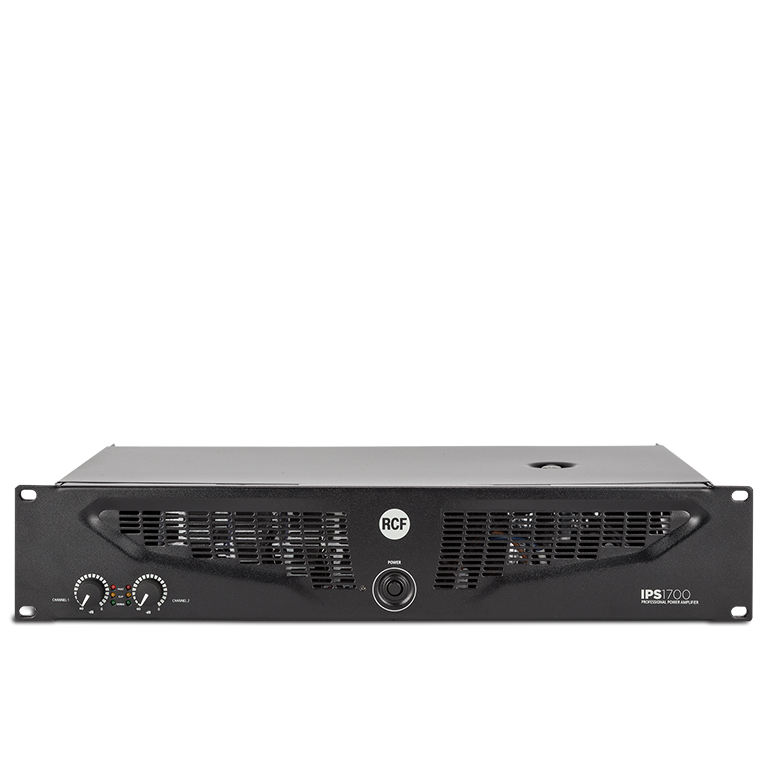

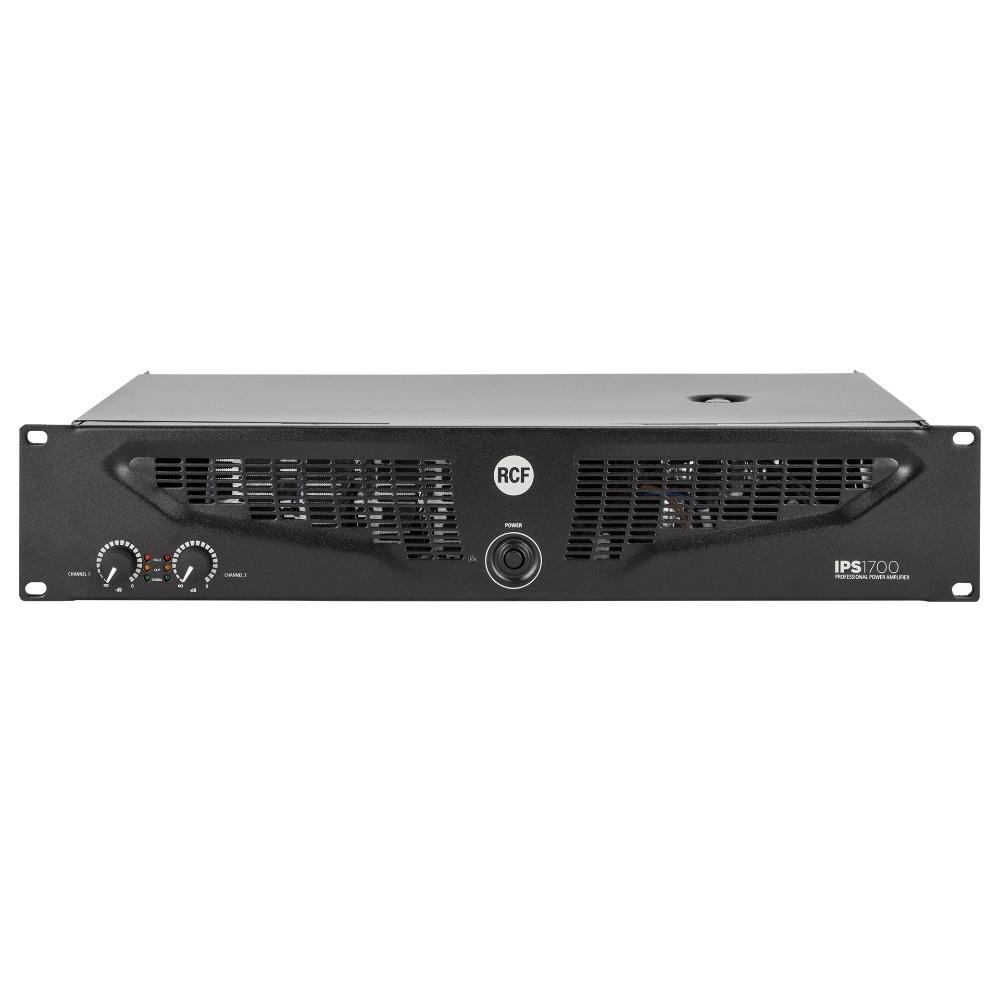

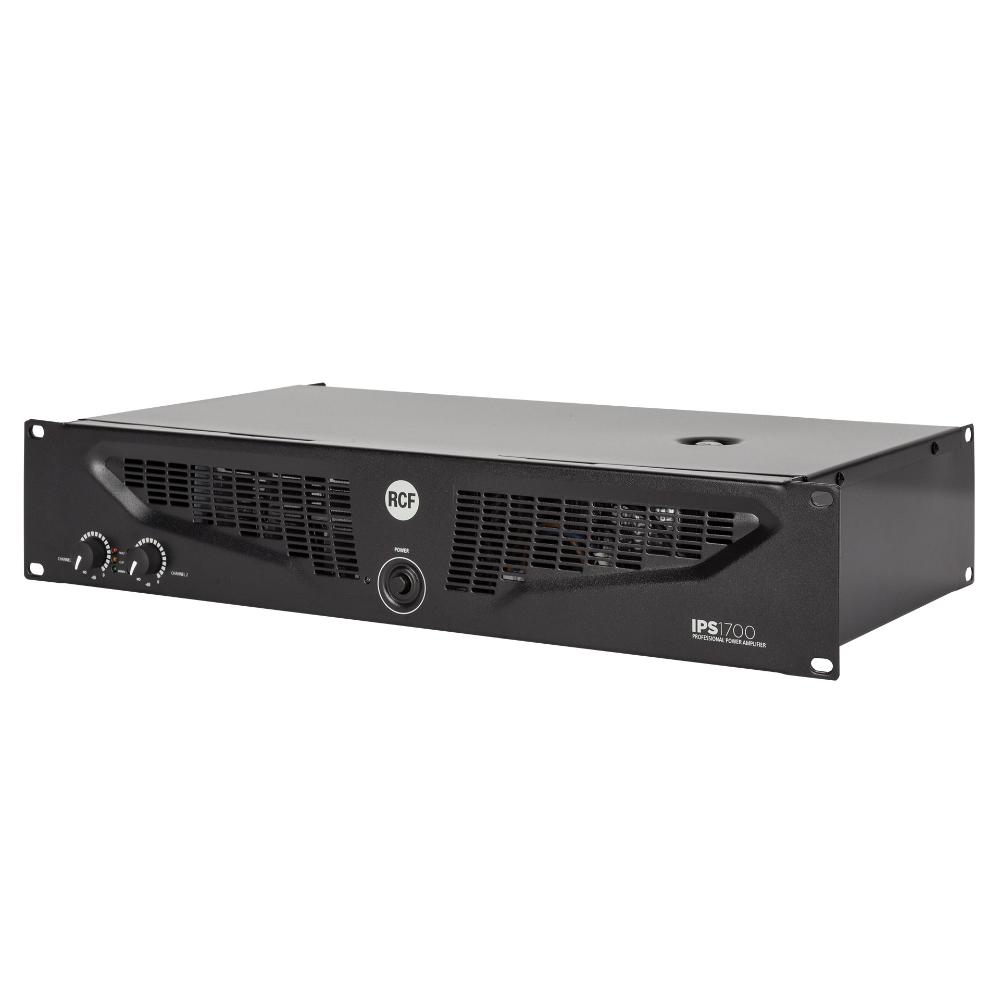

IPS Series is a range of two-way professional amplifiers that combines high quality performance and reliability with the latest power amplifications technologies. This high value power-to-cost designs offer, in compact lightweight 2 rack unit space, the sound quality and the durability of traditional class AB and class H designs with the innovation of the latest power devices available. IPS 1700 is a 2 channel power amplifier that delivers up to 2 x 450 W RMS @ 4 O (900 W RMS bridged @ 8 O), weighing just 12,7 kg. It features independent gain dials, signal – clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono – stereo – bridge switch, powercon outputs. Moreover, it is protected against shorts and open circuits. Thanks to its high efficiency heat sinks and high speed DC fans, the IPS 1700 can withstand the hardest heat conditions ensuring great reliability.


ARCHIVED

Part number:

12135088
IPS 1700
115V, EAN 8024530011765

12135089
IPS 1700
230V, EAN 8024530011017

Specifications
Amplifier specifications
Output power
2 x 330 W @ 8 ohm
Frequency Response (-3dB)
20 Hz ÷ 20000 Hz
Crosstalk
<75 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.5 %
Input section
Total number of inputs
2
Balanced
2
Mono
2
Line inputs
2
Line connectors
XLR
Output section
Signal output number
2
Signal output connectors
XLR
Power output connectors
Speakon
Configuration and control
Configuration
DIP switch, Front panel
Protections
Cooling
Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Power consumption (MAX)
350 W
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
Physical specifications
Color
Black
Rack mounting
19", 2U
Size
Height
88 mm / 3.46 inches
Width
482 mm / 18.98 inches
Depth
255 mm / 10.04 inches
Weight
11.1 kg / 24.47 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
580 mm / 22.83 inches
Package Depth
570 mm / 22.44 inches
Package Weight
13.8 kg / 30.42 lbs
