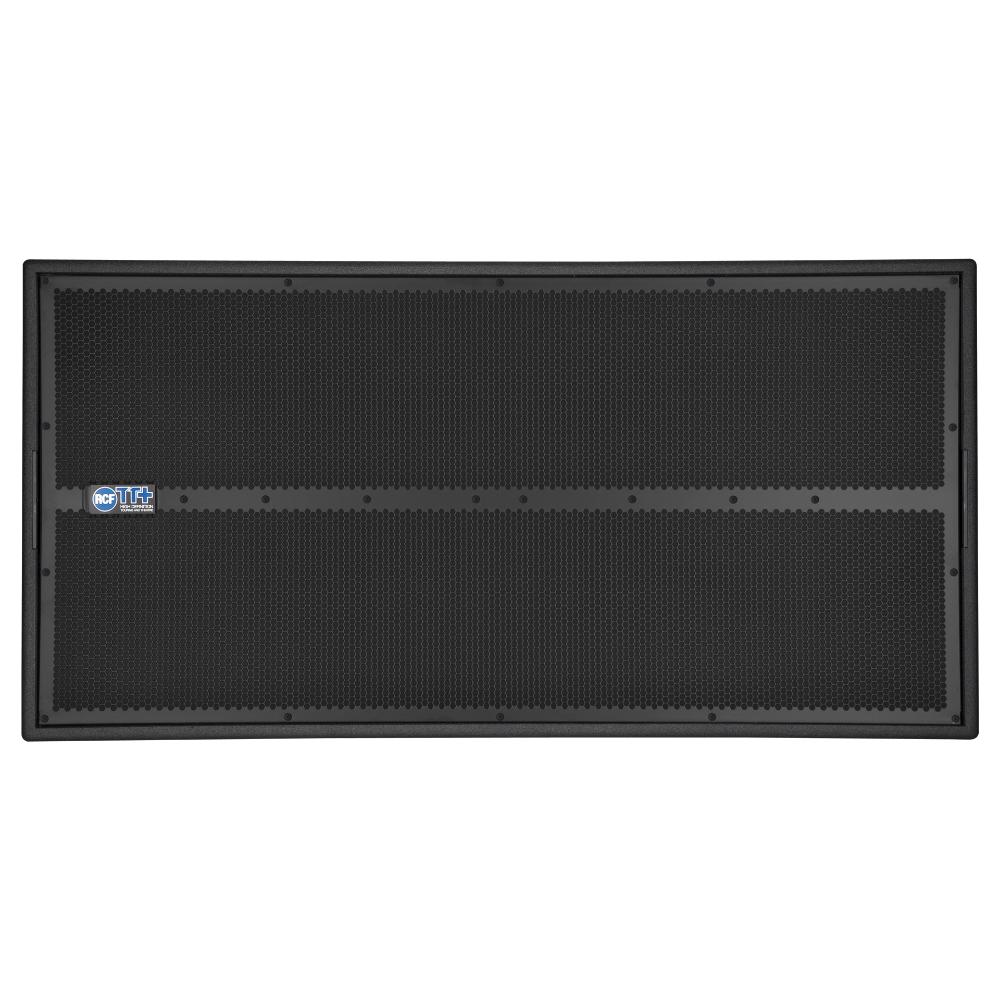

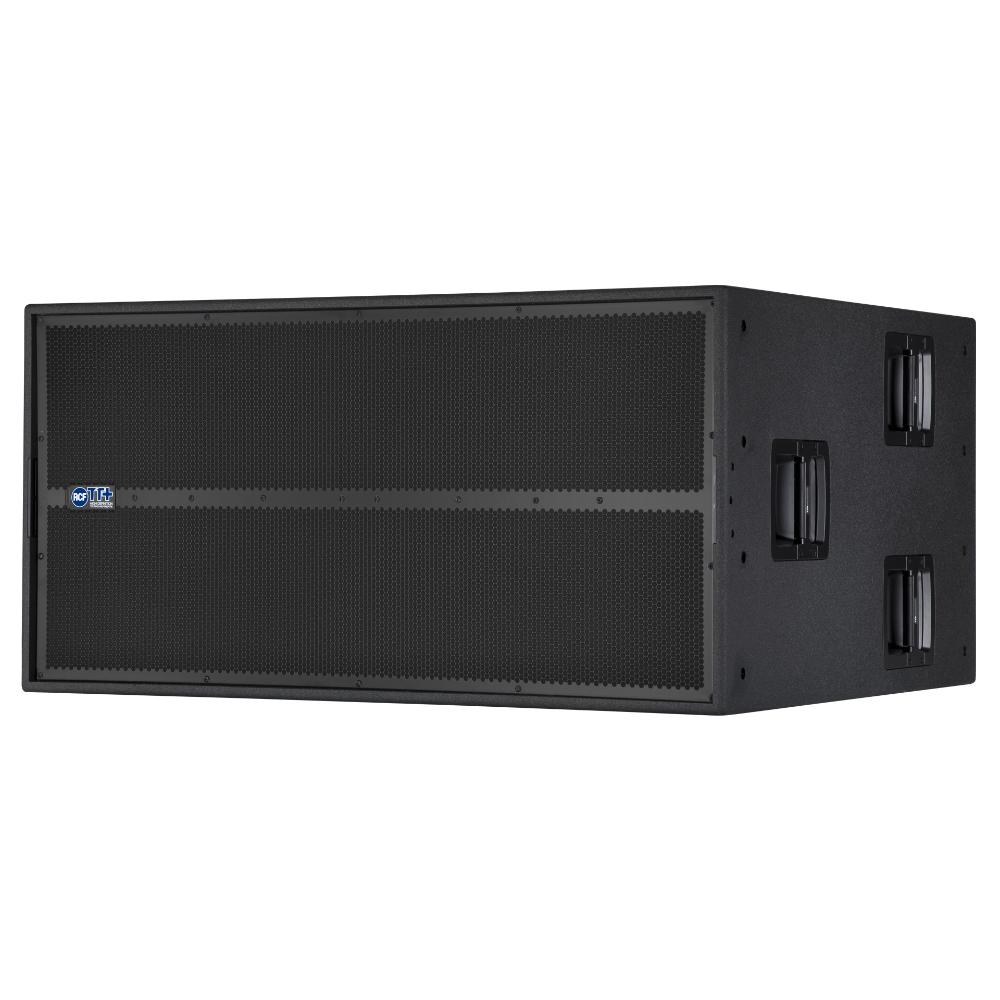

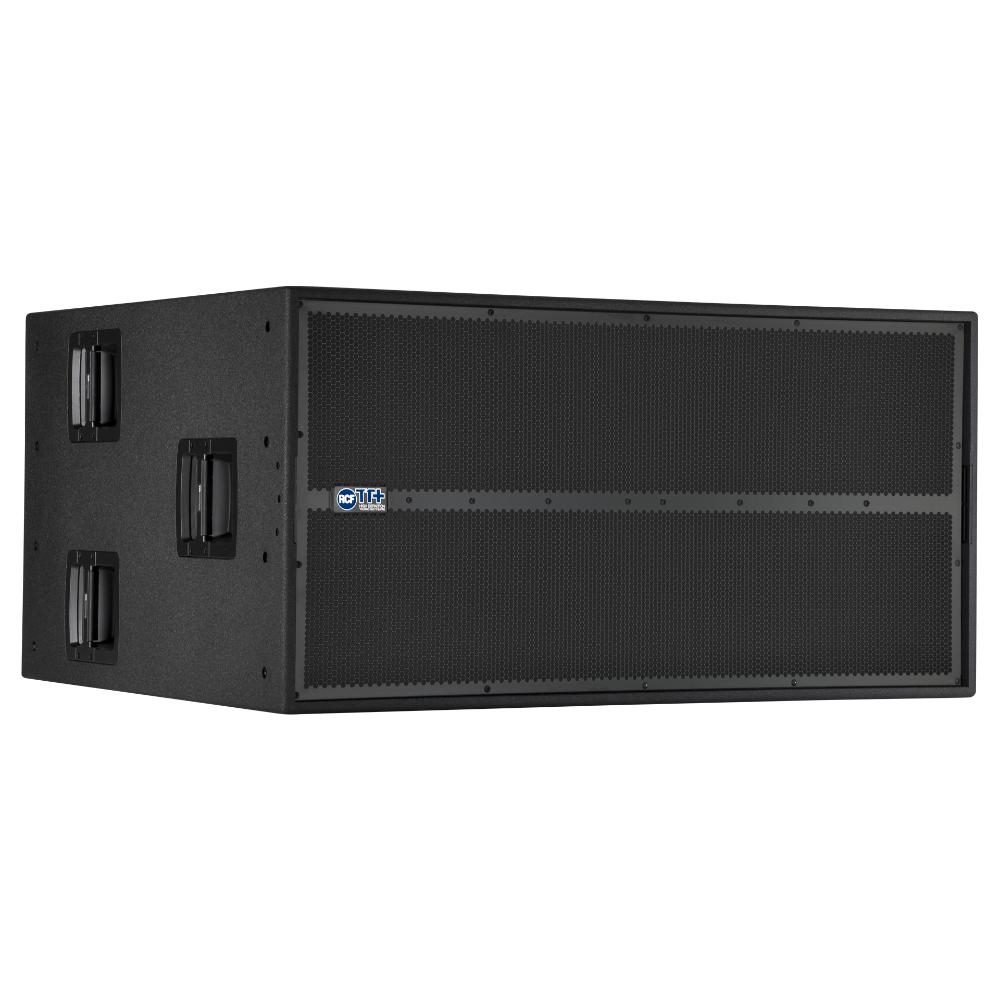

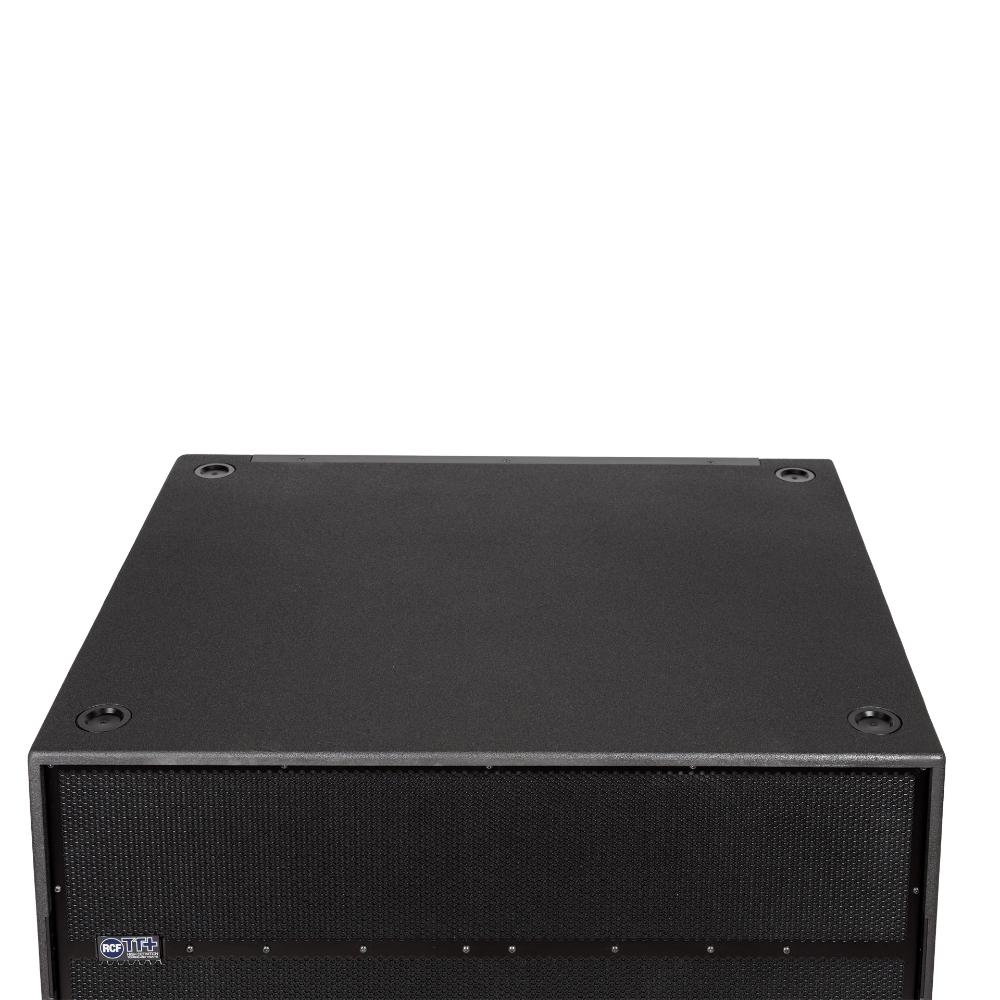

TTS 56-A
ACTIVE HIGH POWER SUBWOOFER
- 2 x 3400 W digital amplifiers
- 2 x 21" high power neodymium woofers
- 96 kHz, 32 bit DSP processing
- RDNet on board
RDNet
Features
- 2 x 3400 W digital amplifiers
- 2 x 21" high power neodymium woofers
- 96 kHz, 32 bit DSP processing
- Remote monitoring and control
- Time delay alignment
- Cardioid preset for groups
- Tour grade cabinet
- RDNet on board
- Maximum output per size on market
The TTS56-A is a high power, high output active subwoofer system that sets a new standard in the touring sound reinforcement. The new 21" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology. The integration of the 6800 W, two channel digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.
RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
Active advantage
An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages:
- Reduced setup time
- Daisy chain signal and power connection of the entire system or by groups
- No additional amplifier rack(s), saving space in the truck
- The sound quality and performance are optimized to the individual components inside the speaker
- The RDNet Networked Control can monitor each component of the system

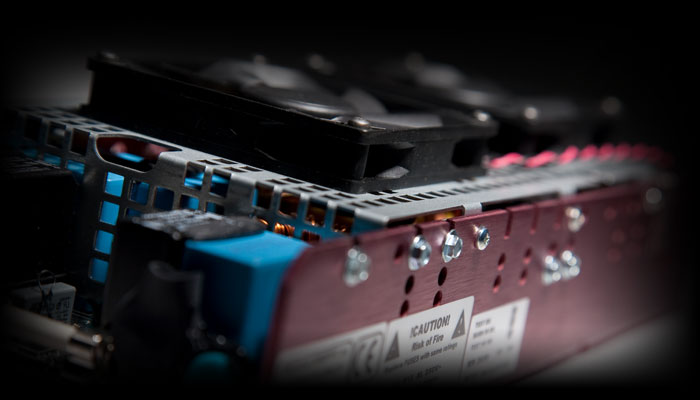

Top and electronics

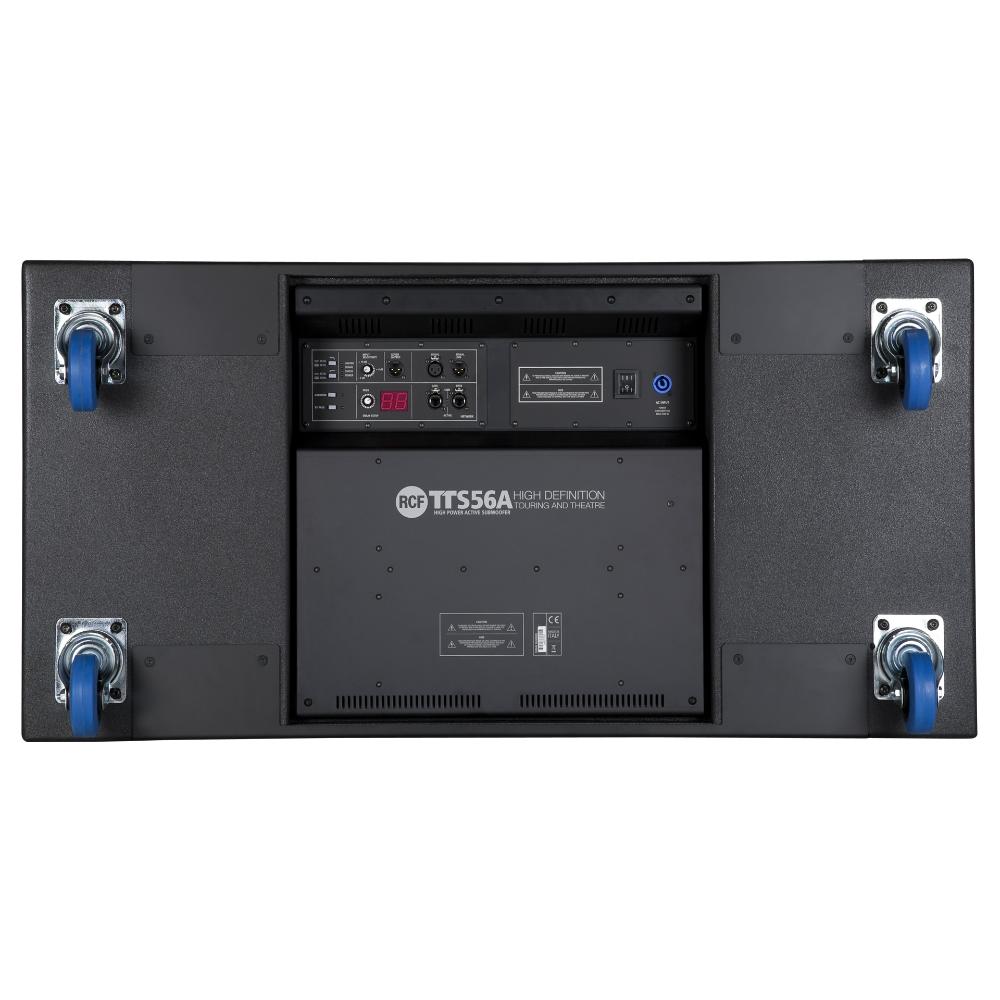

The amplifier integrates a low-noise 32 bit DSP circuit, controlled through the RCF exclusive RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing and equalisation. All the settings, monitoring and advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay and presets.

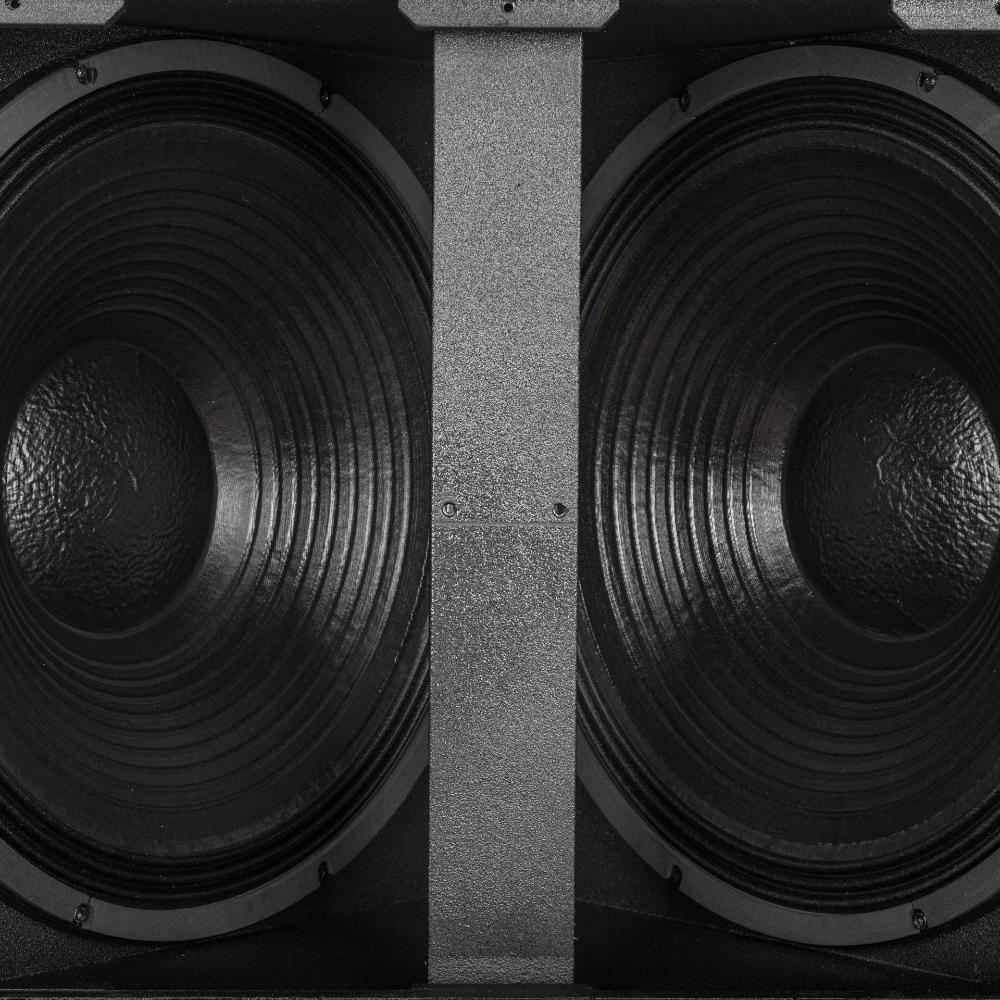

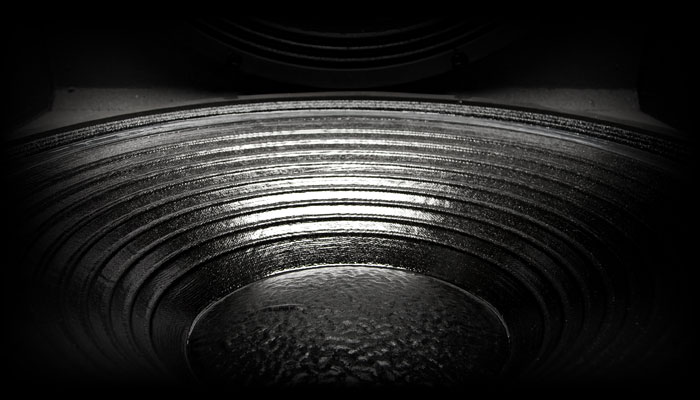

High performance hypervented
RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.
Cabinet

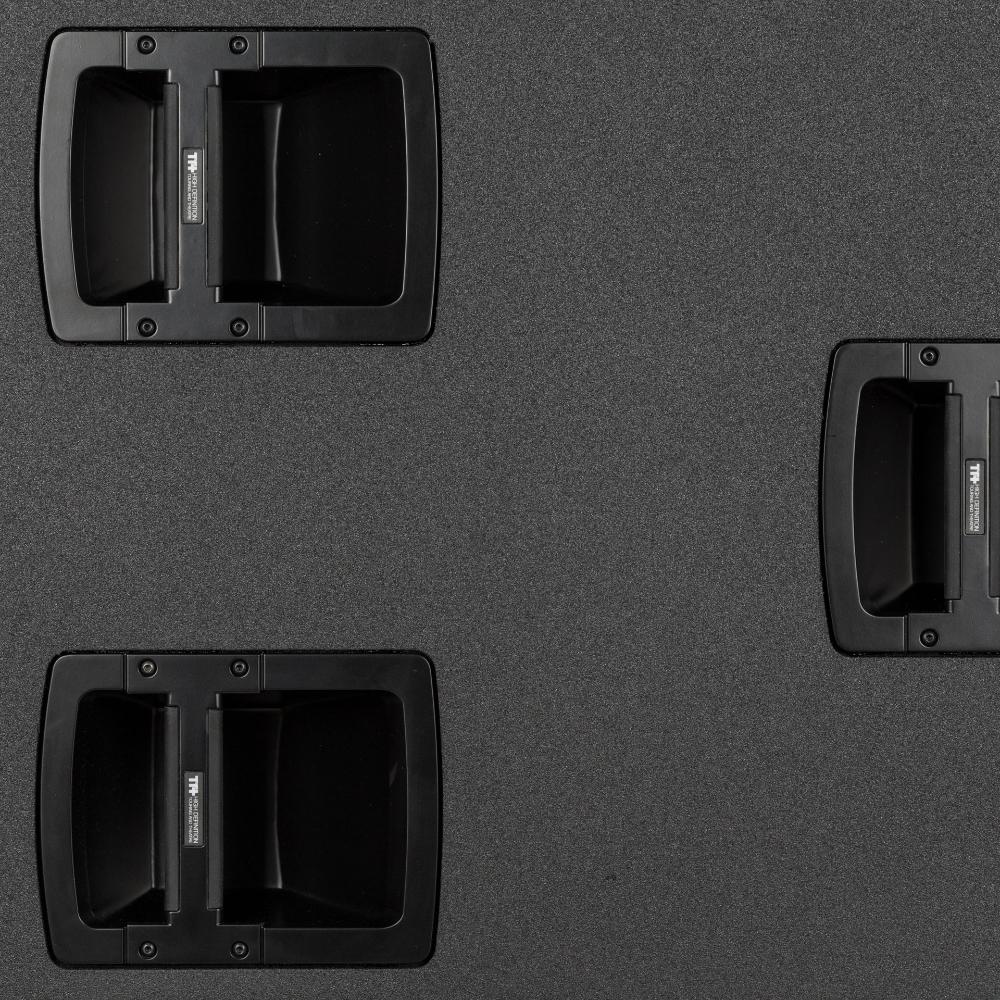

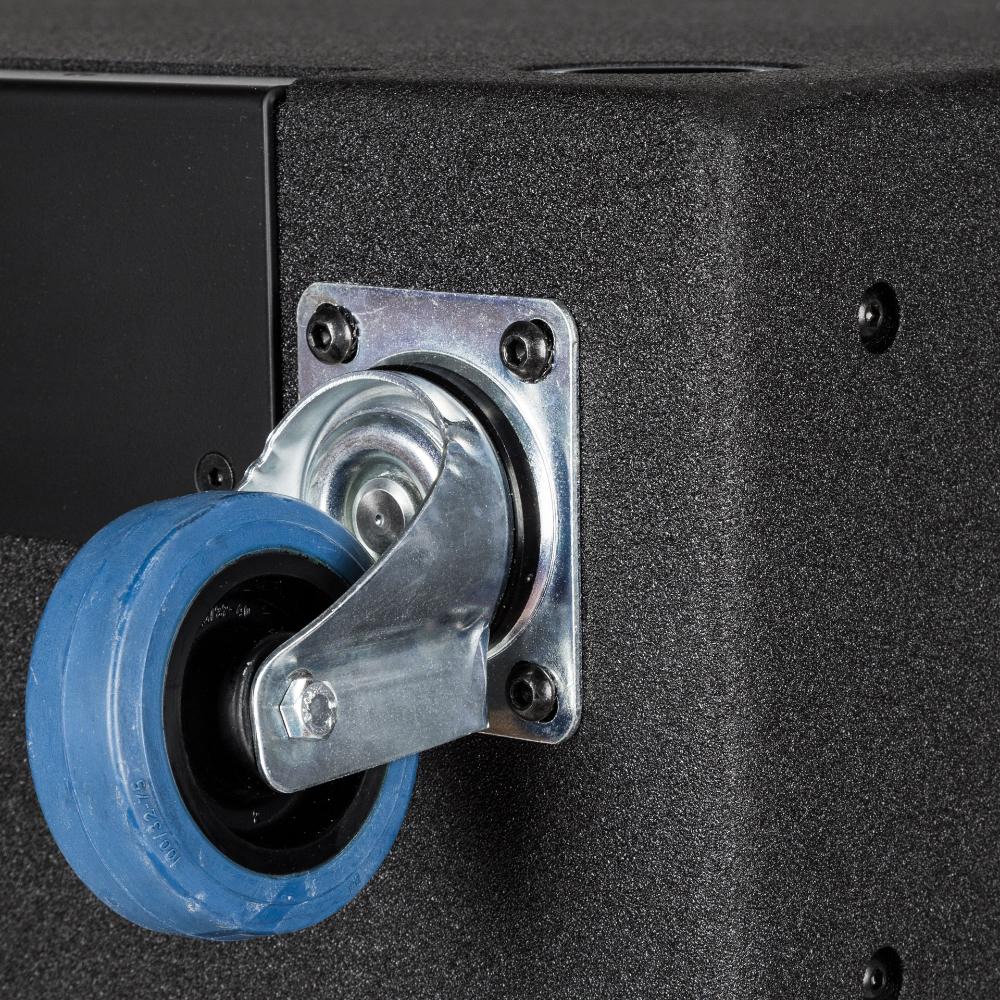

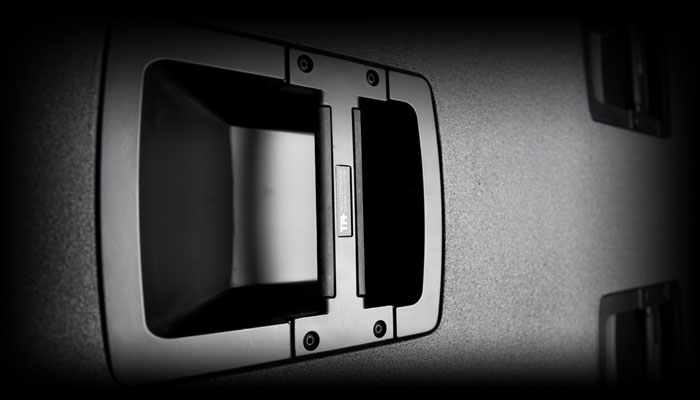

The RCF TT+ cabinets are made of high-quality birch plywood with weatherproof treatments, 4 reinforced rubber feets, nylon side protection accessories and 6 handles. The back of the cabinet is provided with two steel bars for fork-lift transportation that preserves the cabinet from being scratched. The subs are stackable and light-weight, for easy set-up and tear down. The polyurea coating and the rugged structure of the cabinet survive long-term use and transportation and the separate Vibrostop housing for the amplifier guarantee the best components efficiency and reliability. The transportation is fast with the detachable Kart kit: a dolly caster-board with rugged tour grade casters and rotating cam mechanism.
The good flow
It’s common knowledge in fluid dynamics that the turbulent airflow is reduced with a smart design of the port.
The improved vented port is a proprietary solution that helps to achieve a good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortion.
The improved vented port is a proprietary solution that helps to achieve a good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortion.
Classic bass reflex port
The flow becomes turbulent and the vortices are evident

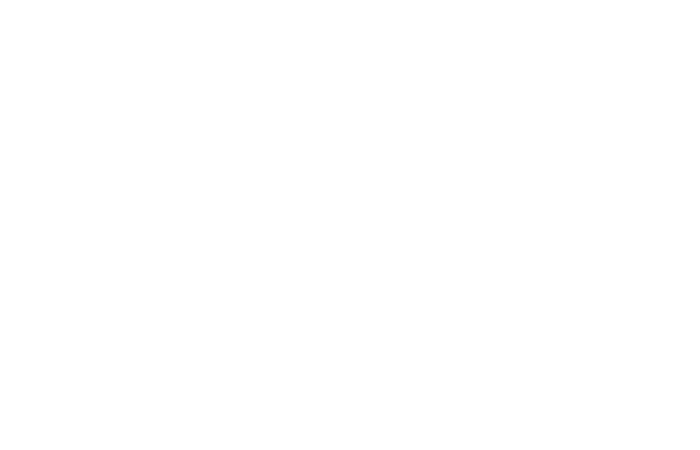

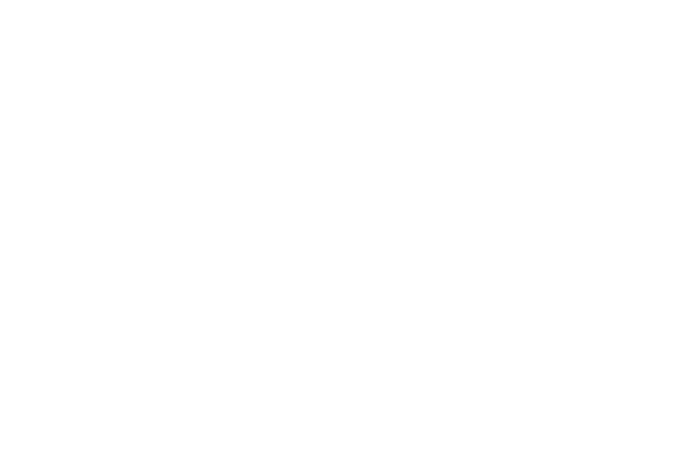

Laminar flow vented port
Good aerodynamic behaviour of the air (laminar),
gaining efficiency and reducing distortions
gaining efficiency and reducing distortions
Subwoofer alignment tutorials
Please enter a valid video URL.
The URL can point to any video file or a Youtube video.
Please enter a valid video URL.
The URL can point to any video file or a Youtube video.
Specifications
Acoustical specifications
Frequency Response
30 Hz ÷ 100 Hz
Max SPL @ 1m
145 dB
Transducers
Woofer
2 x 21'' neo, 4.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
-2 dBu/+10 dBu
Processor section
Hi-Pass Frequencies
30-45 Hz
Low-Pass Frequencies
60-90 Hz
Protections
Thermal, Excurs., RMS
Limiter
Soft Limiter
Controls
DSP Controlled
RDNet
Yes
Power section
Total Power
13600 W Peak, 6800 W RMS
Low frequencies
13600 W Peak, 6800 W RMS
Cooling
Convection/Forced
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
2 x steel bar fork - lift transportation, 4 x 100 mm wheels
Handles
6 side
Grille
Steel
Color
Black
Size
Height
590 mm / 23.23 inches
Width
1170 mm / 46.06 inches
Depth
988 mm / 38.9 inches
Weight
122.8 kg / 270.73 lbs
Shipping information
Package Height
1316 mm / 51.81 inches
Package Width
800 mm / 31.5 inches
Package Depth
1200 mm / 47.24 inches
Package Weight
178.2 kg / 392.86 lbs
